B4YB0657 B4YB0618 LED Underwater Swimming Pool Lights in Single Color / RGB Color 0 - 10V Dimming
Description
| Lamp Source: |
6 * 2W Osram LED Or 6*3W 3-in-1 RGB LED |
Color: |
Single Color Or RGB |
| Power: |
16.8W(Single Color), 24W(RGB) |
Construction: |
316 Marine Grade Stainless Steel |
| IP Rating And IK Class: |
IP68 And IK08 |
Working Voltage: |
24VDC |
| Control Options: |
0-10V, PWM |
Approved Use: |
Underwater |
| Accessories: |
PVC Mounting Sleeve(included) |
Luminance (lm): |
Cool White=1234, Warm White=906, RGB=420 |
| High Light: |
underwater swimming pool lights
,
recessed underwater light
|
B4YB0657, B4YB0618 6 * 2W 24V Symmetrical Underwater LED Pool Light 17W 24W Made of 316 Stainless Steel
Features and Benefits:
1. 24VDC working voltage, safe to use;
2. Use the Silcone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture;
3. Built-in Radiator helps prolong lifespan of LEDs;
4. Made of molding 316 Stainless Steel resistant to corrosio;
5. IP68 Waterproof, can be submersed and installed into water, depth less than 1meter;
6. Optional lens: Symmetrical or asymmetrical lens;
7. Easy to install by Recessed PVC mounting Sleeve (included).
Warning:
Must be installed underwater to prevent the light from burning up because of over-heating.
Material specifications
| Front cover&Housing |
Molding shaped sus 316L# stainless steel housing |
| Gasket |
EPDM gasket |
| Glass |
Step tempered glass. T=9mm |
| Lens |
Optical lens, efficiency≥85% |
| Cable gland |
IP-68 PG-11 copper with nickel-coated |
| PCB |
Excellent heat conductivity aluminum,
coefficient of heat conductivity≥2.0w/mk |
| Driver |
Constant current output
Single color LED=1-circuit output
RGB 3in1 LED=3-circuit output |
| Application environment: |
Temperature of water between -20℃~40℃,
less than 1 meter depth. |
| Power cable |
H07RN-F 2X1.0mm^2 L=3m (for Single color)
H07RN-F 4X1.0mm^2 L=3m (for RGB) |
| Mounting sleeve |
PVC |
Technical Information:
| Item No. |
Light Source |
Lens |
Beam
Angle
|
Input
Voltage
(V)
|
Typical
Operating
Current(mA)
|
Typical
Power
(W)
|
Typical
Luminance
(lm)
|
IK
Rate
|
| B4YB0657 |
6*2W Osram |
B32 |
30 |
24VDC |
700 |
16.8 |
Cool White=1234
Warm White=906
|
08 |
| B4YB0618 |
6*3W 3-in-1
RGB Full Color
|
B8 |
25 |
24VDC |
R=300
G=350
B=350
|
24 |
420 |
08 |

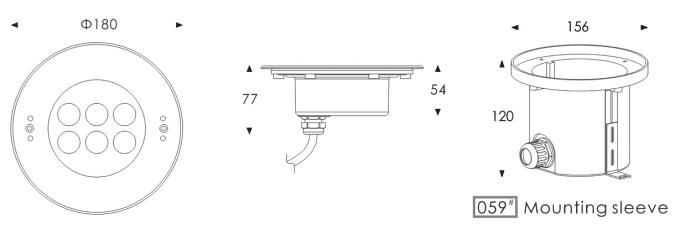

Dimensional Drawing(mm):
Optical Lens Options:
 |
| Built-in Radiator |
Use the Silcone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture
|
Water must be allowed to go inside and outside sleeve freely without leaking from the other side. |
